AWS Odin Engine Cluster Usage Instructions (For Subscription)

You need to take a few steps both before and after deploying one of the CloudFormation stacks on the AWS Marketplace listing before you can start using Odin Engine. This guide explains all of the them in detail.

Please note that this guide does not aim to teach you how to use Odin Engine or explain its components in depth. It only demonstrates how to configure your AWS environment and verify that the cluster works correctly. Please refer to the product documentation on Odin Portal for a more detailed overview of the system and usage instructions. You will need to create an account on Odin Portal to access this documentation.

Set-up AWS License Manager

Before Odin Engine cluster can be deployed using one of the CloudFormation stacks, you must set up AWS License Manager.

Access the License Manager console as an admin in the management account and click Start Using AWS License Manager.

You will be prompted to create the required permissions to manage licenses. Grant AWS License Manager the required permissions by selecting Grant Permissions.

You only need to enable AWS License Manager once per account. This setup is managed globally and applies across all regions.

Create a Key Pair in Your Deployment Region

A key pair, consisting of a private key and a public key, is a set of security credentials that you use to prove your identity when connecting to an instance. It is worth noting that key pairs are not global; they exist and can only be used within the region where they are created.

How to Create a Key Pair in the AWS Console

1. Navigate to the EC2 service.

2. In the left-hand menu, select Key Pairs under the Network & Security section.

3. Click Create Key Pair.

4. Provide a Key Pair Name and choose a Key Pair Type (e.g., RSA or ED25519).

5. Specify the Private Key File Format (e.g., PEM for OpenSSH or PPK for PuTTY).

6. Click Create Key Pair.

7. Download the private key file securely when prompted.

Note: Ensure you save the private key file safely, as it cannot be downloaded again.

You will also need to provide this key pair’s name (without the file extension) before deploying the CloudFormation stack later.

Configure and Deploy Odin Engine Cluster CloudFormation Stack

You are now ready to deploy the CloudFormation stack. In the AWS Management Console, go to AWS Marketplace, click Manage Subscriptions, and select your Odin Engine subscription. On the right hand side of the Agreement section, click Actions and select Launch more software.

On the next page, select your desired Fulfillment option and Software version, and click Continue to Launch.

On Launch this software page, click on one of the two links under Deployment template to deploy one of the stacks. There are two stacks you can choose from: Large 8 vCPUs 32 GiB Memory Stack and Standard 4 vCPUs 16.0 GiB Memory Stack. The Standard stack deploys a cluster containing a controller and 3 worker instances with 4 vCPUs and 16.0 GiB of Memory, and the Large stack deploys a cluster containing a controller and 3 worker instances with 8 vCPUs and 32.0 GiB of Memory. All the other components of both clusters are identical for both stacks. There is a more detailed overview of the components of Odin Engine cluster in a later section in this guide.

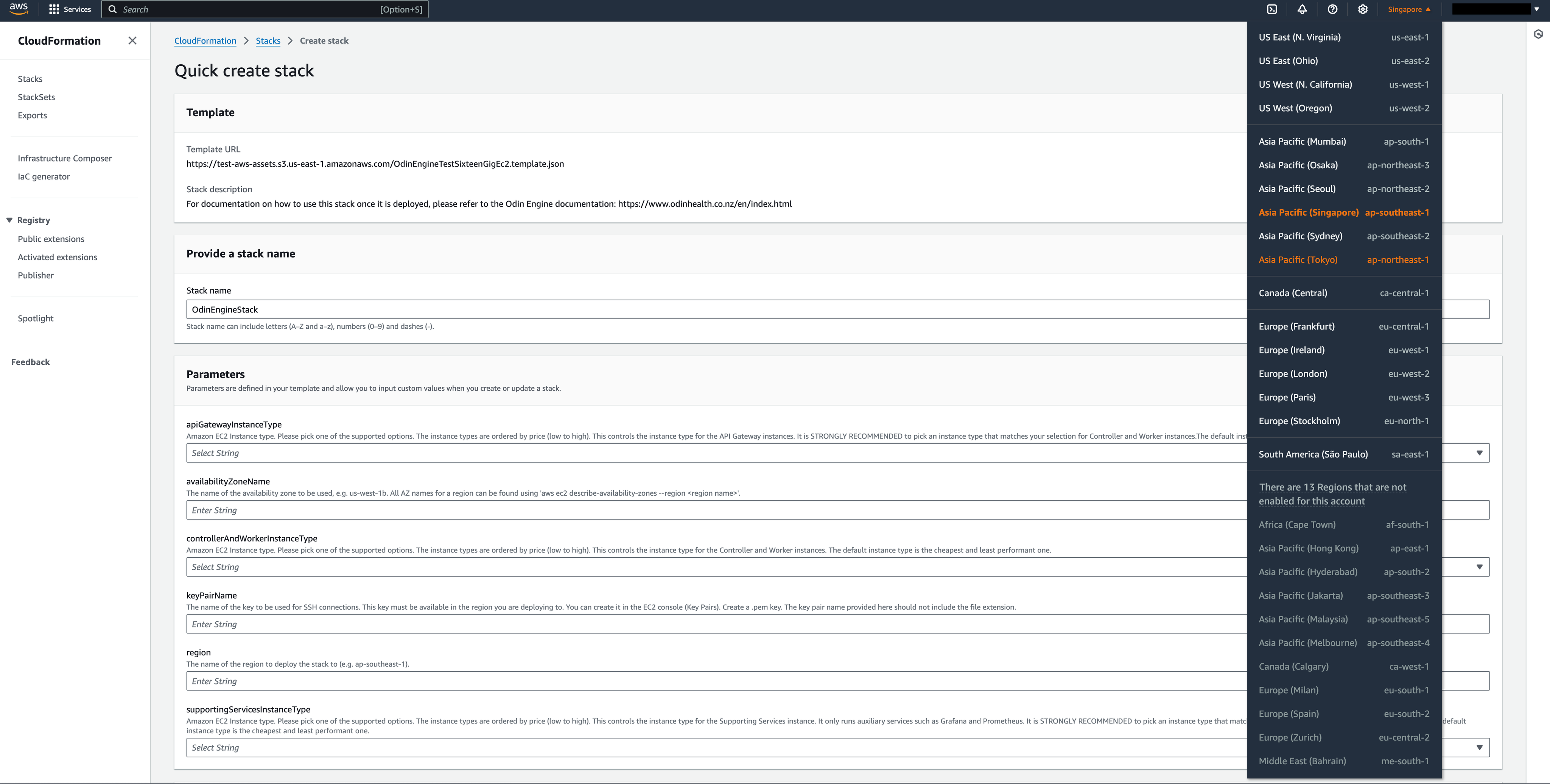

Once you select the stack, the next page you will see is Quick create stack. You can select your deployment region here as shown on the screenshot.

Once you’ve chosen your region, fill in the parameters on the page. A description below each parameter explains the expected values. Then, check the I acknowledge that AWS CloudFormation might create IAM resources checkbox at the bottom of the page and click Create Stack. You do not need to adjust the Permissions section for the stack deployment to work.

It usually takes around 10-15 minutes for the stack to become ready to use. You will be redirected to CloudFormation service in the AWS Management Console when you initiate stack deployment. Once the status of your stack displayed on this page becomes CREATE_COMPLETE, you can proceed to the next steps.

Odin Engine Cluster Topology Overview

Before proceeding to the final configuration steps required to start using Odin Engine, we will outline the main components of the cluster. This will help you more easily understand the next steps in this guide.

Both stacks create a VPC with two subnets: a public subnet and a private subnet with outbound internet access

Both of the CloudFormation stacks on the AWS Marketplace create identical infrastructure, except for the different sizes of controller and worker instances as explained earlier. As you can see on the diagram, all EC2 instances except for the jump host instance are placed in the private subnet. The instances in it can only make calls to the outside world, but do not allow connections from outside the VPC. This instance placement was chosen for security reasons.

Cluster EC2 Instances

1. API Gateway Prod

2. API Gateway Dev

3. Controller

4. Worker 1

5. Worker 2

6. Worker 3

7. SupportingServices

8. JumpHost

The worker instances service production workloads. The controller is used for developing/testing projects in Odin Engine and configuring the system through the web console. The API Gateway nodes sit between Production and Development Network Load Balancer and Workers and Controller respectively (more on that below). SupportingServices runs Grafana, Prometheus, Postgres, and other services that Odin Engine workers and controller rely on to function correctly. JumpHost is only used to SSH into instances in the private subnet.

Cluster Networking

Whether you access the Odin Engine UI or call project endpoints, the traffic goes through one of the Network Load Balancers. TLS termination also happens at the NLB if it is enabled (how to enable it is covered later in this guide).

Calling a project endpoint or getting access/refresh tokens

The traffic flows through one of the API gateway nodes when you call a project endpoint. So you will need to configure API Gateway Service in the Odin Engine management console first to reach any project endpoints.

When you access the Odin Engine management console, the traffic still flows through the NLB, but not through an API gateway node.

Accessing the Odin Engine management console

Finally, when you need to SSH into an instance in the private subnet, you need to use the jump host instance. Various approaches are possible here: copying the target instance key to the jump host, using SSH agent forwarding, etc.

Now that you have a good conceptual understanding of the cluster, you are ready to make the configuration changes to start using it.

Make Required Configuration Changes After Deployment

The instances in the private subnet cannot be accessed from the outside world. While the NLBs and JumpHost are in the public subnet, they have security groups with no inbound rules defined. Therefore, before you can use Odin Engine, you will need to take a few more steps to whitelist your IPs.

Access Odin Engine Management Console

The first step before accessing the management console is to add an inbound rule to your Development NLB’s security group. It is this NLB that acts as a proxy to the controller instance which hosts the website.

Add Inbound Rule to Development NLB’s Security Group

Go to EC2 in AWS Management Console, and select Load Balancers. You will see the two Network Load Balancers there. To identify the Development one, you can filter them by tag:

Paste LoadBalancerType = Dev into the search box and press enter

Next, click on the load balancer and navigate to Security tab to find its attached security group. Click on the security group and add an inbound rule to allow connections to reach Odin Engine management console. The initial listener is configured on port 8080, but can later be reconfigured. An example inbound rule to allow connecting to UI could look like this.

Select Type HTTP or HTTPS to follow the principle of least privilege

Login to Odin Engine Management Console and Verify the Cluster Is Healthy

If you want to verify that the cluster is up and running now, you can open the UI in your browser. However, please note that TLS termination hasn’t been configured yet, and your requests will be sent to Development NLB as plain text. Please refer to a later section in this guide if you would like to configure TLS termination at Development NLB first.

The URL to access the UI when the cluster is first deployed is http://[development-network-load-balancer-host]:8080. You can reconfigure the port and/or switch to using https by following instructions in NLB TLS Termination section.

Once you access the UI, you will need to login. Use username “admin” and password “password” to login. You can change those later.

When you login, you will land on this page. You can confirm that all nodes in the cluster are healthy here.

The gauge in the top right-hand corner shows the current status of all worker nodes in the cluster.

Add Inbound Rules to NLB Security Groups to Call Projects

There are two environments in Odin Engine Cluster Edition - Development and Production. You can select the environment you wish to view/edit by picking it from the dropdown menu in the top left-hand corner.

Development is for creating projects and making test calls to verify they’re working as expected. The requests to projects in Development go through Development NLB and Development API Gateway and are serviced by the Controller node.

After projects and other configurations are tested, they are deployed to Production. The requests to projects in Production are handled by Worker nodes. These requests go through Production NLB and Production API Gateway.

Development and Production NLBs each have a separate security group, so you can configure inbound security rules for each of them separately.

Please refer to the previous section to for instructions on how to choose the NLB and edit rules in its security group. The production NLB has a tag “Prod”, and can be found in the list of NLBs by searching LoadBalancerType = Prod.

SSH into Instances in the Private Subnet

You will occasionally need to SSH into the EC2 instances in the private subnet to do system administration or check logs. However, none of the instances can be accessed via SSH from outside the VPC. You will need to make use of the jump host instance in the public subnet to SSH into the instances in the private subnet. There are multiple approaches you can take to achieve that. For example, you can copy your private key to the jump host using SCP, SSH into the JumpHost, and SSH into your target private instance from it. Another approach would be to use SSH Agent Forwarding.

Before you can SSH into the jump host, you need to add an inbound rule to SshAccessSecurityGroup . Go to EC2 service in the in the AWS Management Console in your deployment region and select JumpHost from the list of Instances.

Select JumpHost

Select SshAccessSecurityGroup

Whitelist your and any other IPs to allow SSH access to JumpHost by adding inbound rules to SshAccessSecurityGroup

Instructions for connecting to JumpHost can be found on its Connect page:

You can simply copy the command at the bottom

You should now be able to connect to any of the private instances. Check their Connect pages to find their IPs and ssh connection instructions.

(Optional) NLB TLS Termination

Using TLS is highly recommended. It is needed to ensure that the traffic from external clients to the NLBs in the VPC is encrypted in transit. Please refer to Cluster Networking section of this guide for more on this. It is still possible to use Odin Engine without this step, but it would not be secure as that would leave data exposed during transmission. It is best to configure SSL certificates for both Development and Production NLBs.

The requests from external clients will be encrypted with TLS using your production SSL certificate once it is configured. The NLB will decrypt the requests, and transmit them on to your cluster.

Generate TLS Certificate(s)

You will need access to DNS records for your domain name. Review the docs on registering domains with AWS’s Route 53. Other DNS providers may also be used.

Later, a subdomain (e.g., demo-service.example-hospital.com) will be created, pointing to the NLB. Access to the DNS records is required to generate SSL certificates for use by the NLBs.

You can create a public SSL certificate for the domain using AWS Certificate Manager (ACM). This is streamlined when the domain is managed by Route 53. Review the AWS Certificate Manager Docs.

The domain name on the SSL certificate must correspond to the planned domain name for Odin Engine. The domain name may be specified explicitly (e.g., demo-service.example-hospital.com), or a wildcard certificate can be used (e.g., xxx.example-hospital.com).

If the domain is registered with Route53, the TLS certificate request will automatically be approved. Otherwise, follow the instructions in ACM console to create a DNS record to validate the domain.

After validation, the certificate will be available for use in your AWS account.

Setup DNS alias for NLB

Create a DNS record pointing from a friendly name (e.g., demo-service.example-hospital.com) to the NLB DNS name (e.g., OdinEn-Vidar-y7PfBmepSS0t-c9a6c28c1632d567.elb.ap-south-1.amazonaws.com.elb.us-east-2.amazonaws.com). You will need to do this for both NLBs.

For AWS’s Route 53, follow the instructions in AWS documentation. If you use a different DNS provider, follow their instructions for creating a CNAME record.

Configure TLS for NLB Listeners

TLS is configured on a per-listener basis. Each listener can have its own certificate. Here’s how you do it:

Choose a Listener

1. Navigate to the Listeners tab of the NLB.

2. Choose and modify an existing one.

Choose the SSL/TLS Certificate

1. Select an ACM certificate or an IAM certificate for the listener.

2. Ensure the certificate matches the domain traffic routed through the NLB.

Refer to AWS documentation for more on this subject.

Verify TLS

How you can verify TLS will depend on what listeners you have configured it for. We highly recommend configuring TLS for each listener for both load balancers.

The easiest way to verify it for Development NLB is to try to access the UI in the browser using https. You can check if your connection is successful and what certificate is used.

To verify TLS for your production NLB, you will need to call a project deployed to production in Odin Engine. How to do this is covered is covered at the end of this guide.

(Optional) Change UI Listener port to 443

By default, you need to access the UI on port 8080. However, if TLS is configured, it is probably better to change this Development NLB Listener’s port to 443 to not have to specify the port every time in the browser. Simply navigate to Development NLB in AWS console and select the 8080 listener, then edit it to update the port.

Test Odin Engine

The focus is to test that the sec rules etc. have been configured to allow e2e usage only. Nothing more. add this comment.

The last step to take to confirm that the cluster is functioning correctly is to configure a test project in Odin Engine management console and make a test call using a tool like curl.

As explained earlier in this guide, requests to project endpoints do not go directly to Controller or Worker nodes. Instead, they go through API Gateway nodes first. So to test that you can successfully call a project, you need to:

1. create a project,

2. create an API Gateway Service and an API Gateway Entry.

This takes a few minutes to setup, but there’s no need to configure everything manually from scratch for your initial test.

Import Odin Engine configuration

In Odin Engine, you can import a configuration that already includes projects, API Gateway Services, etc. So you can download a configuration with the test project already set up, import this configuration, and make the test call.

Odin Engine Test Configuration: vidar_export_controller.zip

This configuration includes a project with an HTTP endpoint and all the required API Gateway entities to reach it.

Once you’ve downloaded it, navigate to Configuration and click Import.

The next page looks like this:

Click Next:

Wait until the import completes and you see this screen:

Make Development Project Test Call

Once the configuration import completes, the test call you can be like this

curl -X POST http://[development-network-load-balancer-host]:8000/test/project -H "Content-Type: application/json" -d '{"exampleKey":"exampleValue"}'

The expected response is going to be 200OK with the body equal to the body you send. In this case –{“exampleKey”:”exampleValue”}.

You need to make a few more manual configuration steps before you can test that your requests reach workers through Production NLB.

Deploy Project

First, deploy the project to production. Click on the Deploy button in the top right-hand corner above the project list.

On the next screen, click Proceed.

Click Proceed in step 2 of this wizard too. When you get to step 3, click Deploy and type a version number (e.g. 1).

Once the project is deployed, you need to start it by clicking the play button on this screen. It may take up to a couple of minutes for the project’s status to be updated to STARTED.

Once the project is started, you can deploy API Gateway Service.

Status STARTED means that the project is ready to accept requests

Deploy API Gateway Service

The last step before making a test call to your deployed test project is to deploy the API Gateway Service to production.

Navigate back to Development environment by selecting it from the dropdown menu in the top left-hand corner and go to Api Gateway page.

Tick the checkbox of the API Gateway Service and click Deploy.

This is very similar to deploying a project, so just click through the steps in the deployment wizard without modifying any of the defaults there.

Click Deploy and add version number on this page as you’ve already done for the project deployment.

Make Production Project Test Call

The only thing left to confirm now is that you can call projects that have been deployed to Production. As explained earlier in this guide, those requests are going to go through the Production NLB and API Gateway.

You can make the same call, but this time to Production NLB.

curl -X POST http://[production-network-load-balancer-host]:8000/test/project -H "Content-Type: application/json" -d '{"exampleKey":"exampleValue"}'

The expected response is going to be 200OK with the body equal to the body you send. In this case –{“exampleKey”:”exampleValue”}.

Troubleshooting

Deploying a stack may sometimes fail with this error:

There are a few different approaches you can take in this situation, but first you will need to delete this stack and the resources that it has created. Please refer to this guide for more information on how to completely delete the stack’s resources. It is important to note that even though the cluster deployment has failed in this case, some resources still need to be cleaned up manually before it can be successfully removed.

When the stack’s status updates to DELETE_COMPLETE, there are a few options:

1. You can re-deploy to a different region.

2. If you want to attempt deploying the stack to the same region again, you will need to delete this stack and wait for about 30 minutes before attempting to deploy it again. If you attempt to re-deploy to the same region again, it’s very likely that the same error will come up.

3. You can contact AWS support to enquire about this issue and possibly request them to adjust your API throttling quota for CreateCapacityProvider API call for your account. Refer to this page for more information. This will usually not be needed, as this issue is rare and simply redeploying the stack will usually be enough to resolve it.
